Every plant is built to your feed and your throughput. The catalog below is the starting point — the final spec is drawn for your site, not lifted from a brochure.
250 t/hr · crawler · CAT C9
The flagship track-mount. Built for production miners on sites without a road. The crawler drives the plant straight to the face, levels itself, and feeds within the shift.
200 t/hr · crawler · CAT C7
Mid-class track-mount, the most common configuration for SE Asian river pits. Heavy enough for production, light enough to cross a built-up access road.

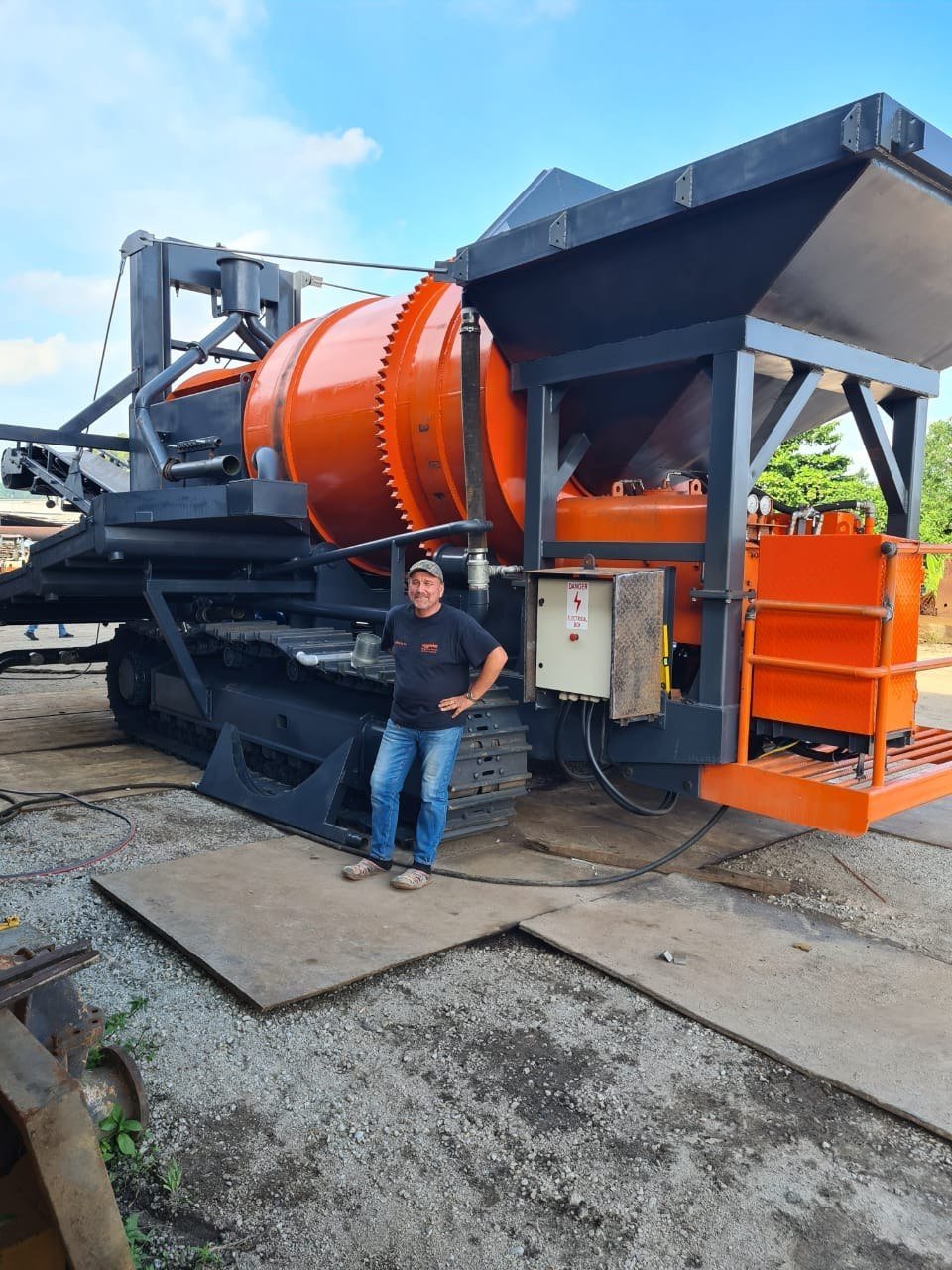

100 t/hr · crawler · CAT C4.4
The compact crawler. Built for jungle claims and remote pits where a road never reaches and a trailer cannot tow. Drives in. Drives out. Done.
100 t/hr · trailer · CAT C4.4
The most-built unit in the catalog. The right answer for the operator with two or three claims, a prime mover, and a need to move between them in the dry season.

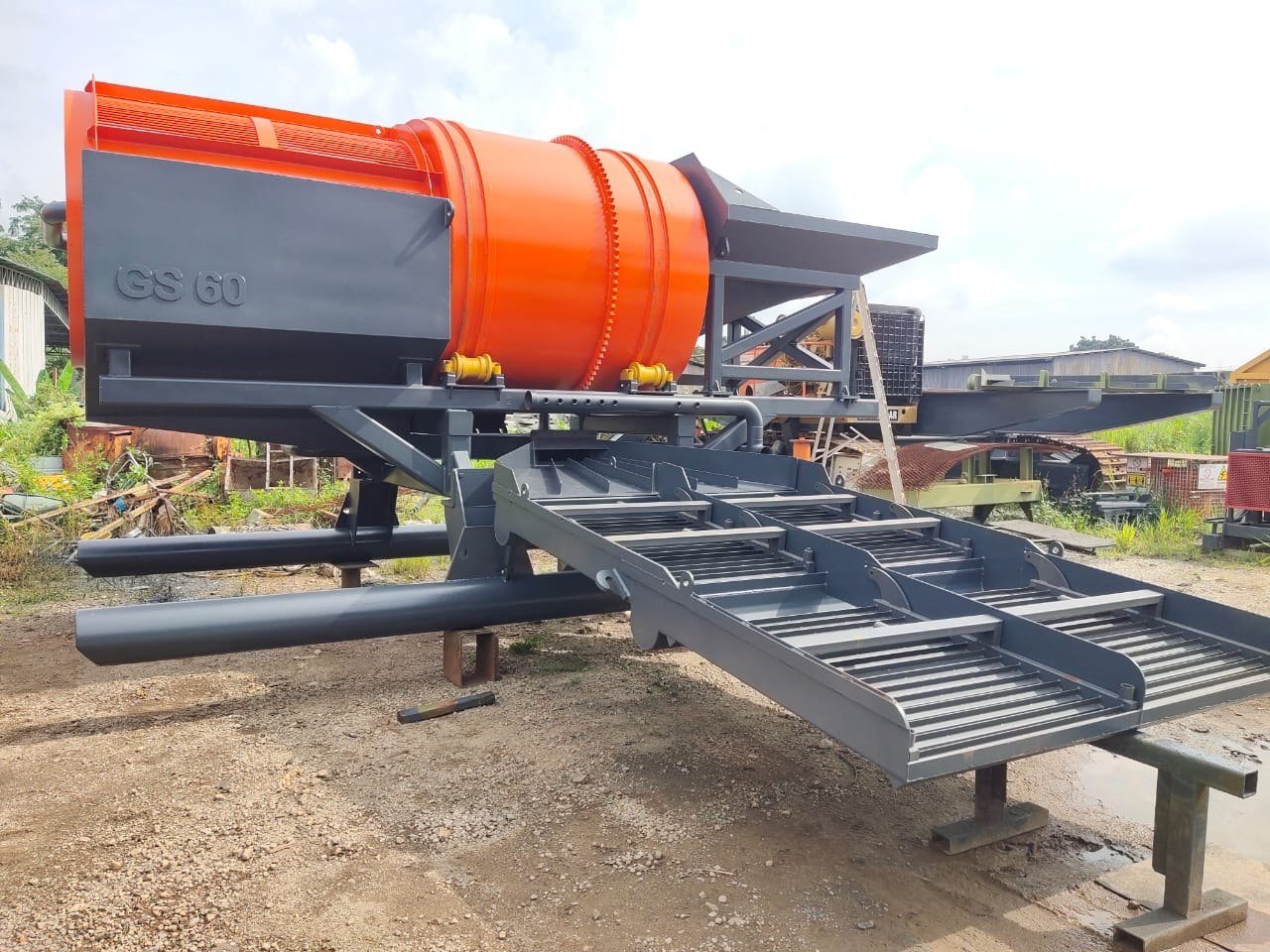

60 t/hr · trailer · Kubota V3800
The sweet spot for small contractors. Light enough to tow with a single prime mover, productive enough to run continuous shifts. Often shipped with an integrated multi-cell sluice extension.

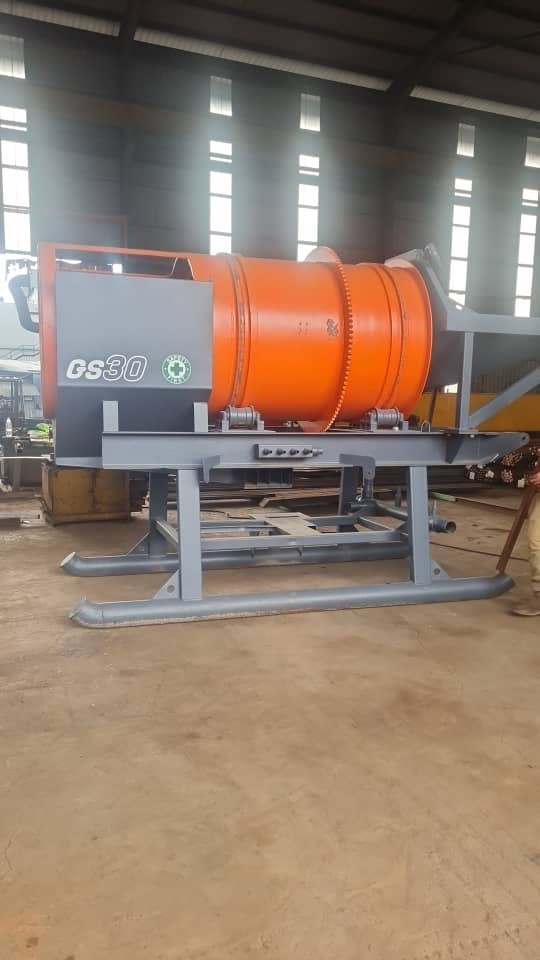

30 t/hr · trailer · Kubota V2403
The starter unit. For prospectors and small operators stepping up from a wash plant. Genuinely two-man portable — drop the stabilisers, hook a hose, run a shift.
300 t/hr · skid · CAT C13
The default production-scale plant. 1.6 m trommel, integrated multi-cell sluice array, feed hopper sized for a 30 t excavator bucket. Built for operators running ≥ 1,500 t per shift.
400 t/hr · skid · CAT C15
The top-of-catalog unit. The largest gold trommel we build, sized for established alluvial concessions with continuous excavator feed. 1.8 m drum, 8-cell sluice, hydraulic feed hopper.
| Model | Throughput | Drum | Engine | Weight | Mobility |
|---|---|---|---|---|---|
| GS30 | 30 t/hr | 0.6 m | 36 kW | 4.5 t | Trailer |
| GS60 | 60 t/hr | 0.9 m | 74 kW | 9 t | Trailer |
| GS100 | 100 t/hr | 1.1 m | 112 kW | 14 t | Trailer |
| GS100T | 100 t/hr | 1.1 m | 112 kW | 18 t | Track |
| GS200 | 200 t/hr | 1.4 m | 224 kW | 22 t | Trailer |
| GS200T | 200 t/hr | 1.4 m | 224 kW | 26 t | Track |
| GS250T | 250 t/hr | 1.6 m | 268 kW | 32 t | Track |
| GS300 | 300 t/hr | 1.6 m | 354 kW | 38 t | Skid |
| GS400 | 400 t/hr | 1.8 m | 403 kW | 46 t | Skid |
